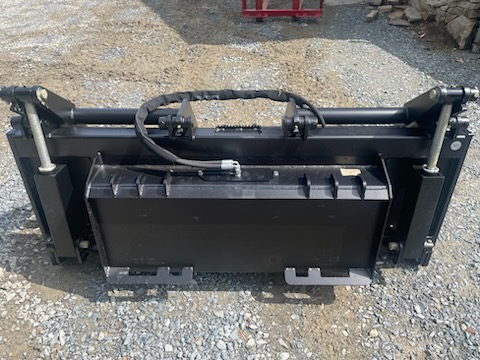

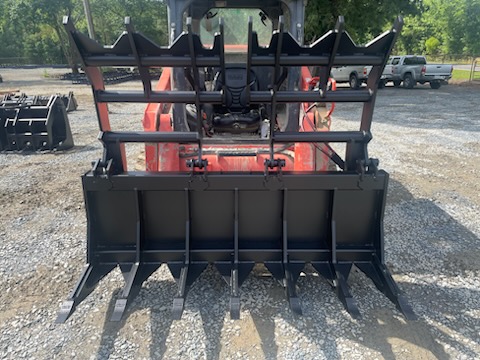

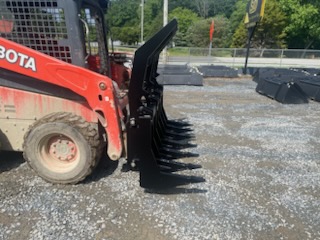

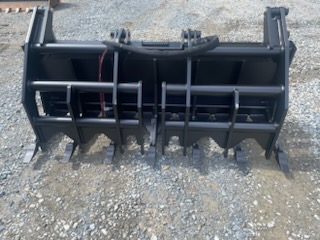

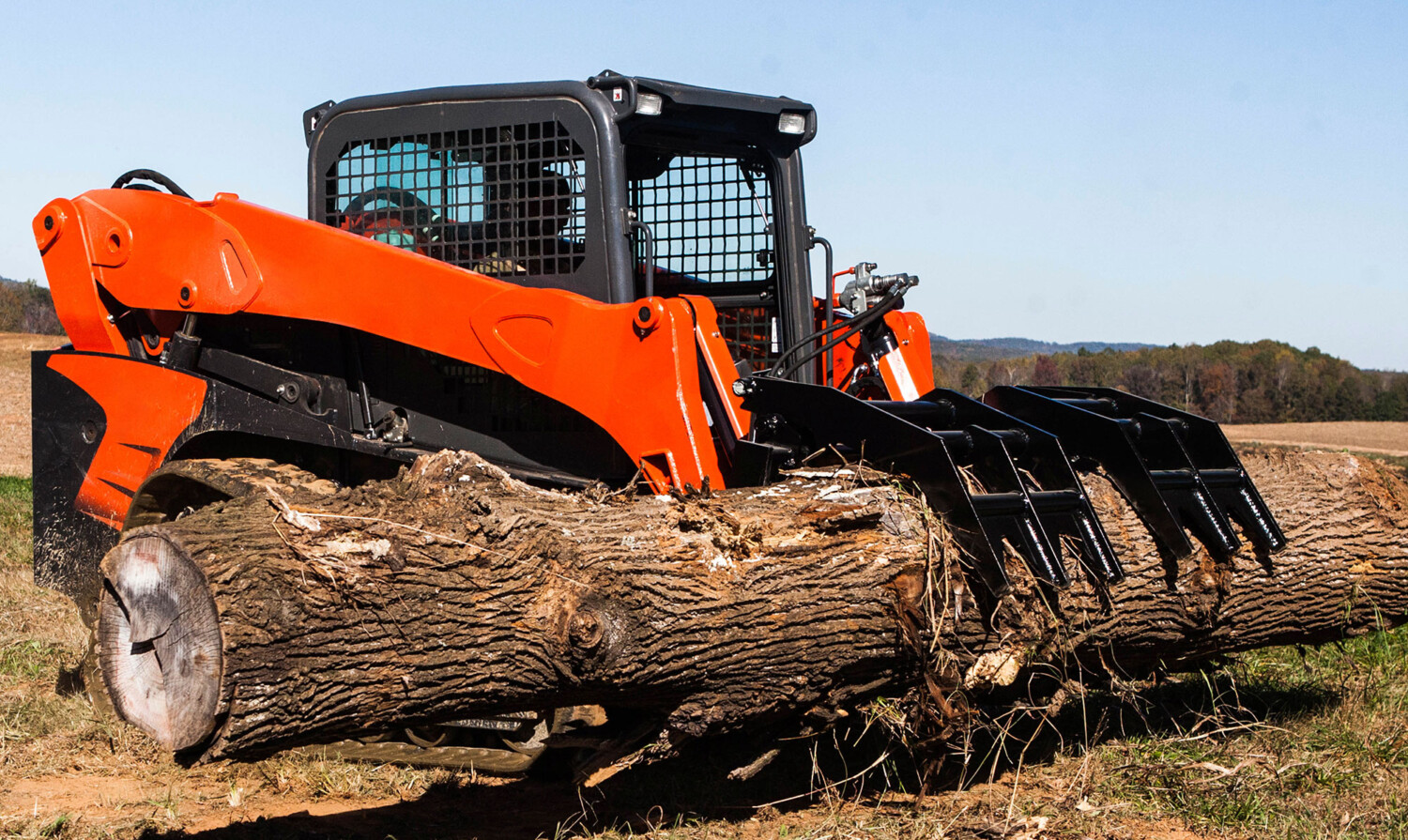

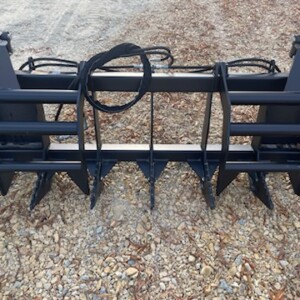

XHD Vertical Root Grapple
➜ Have questions or want to learn more about this equipment? Our experts are here to assist you with detailed information, pricing, and availability. Reach out by phone, send us an email, or visit us in person at any of our convenient locations.
- Performance Guaranteed
- Made in USA
- Available at Denton, NC
- Available at Myrtle Beach, SC
XHD Vertical Root Grapple — Specifications
Overview

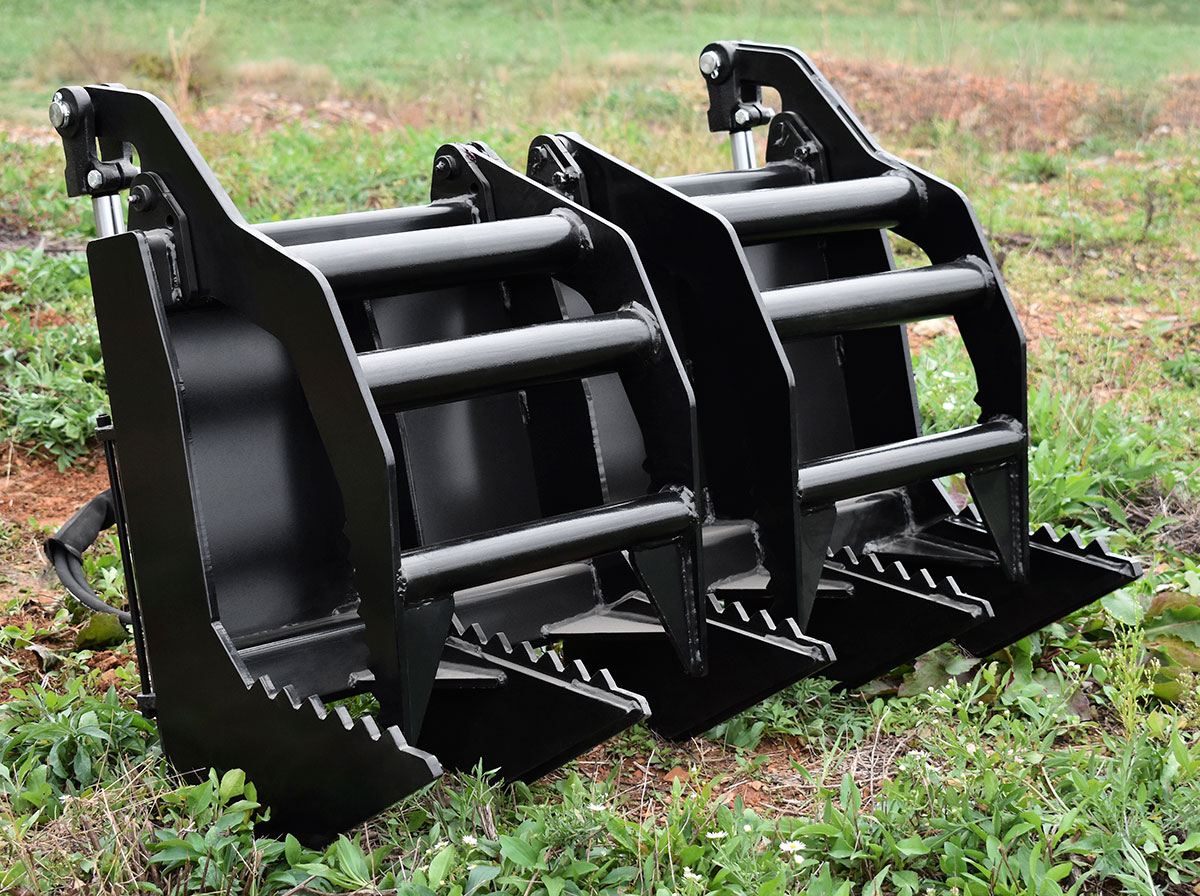

Our extreme heavy duty vertical-style root grapple works like a rake to sift dirt and debris with maximum opening. Built for the most demanding jobs.
Core Specs
| Overall Height | 38 1/4” |
|---|---|
| Overall Length | 31 1/4″ |
| Top Tines | 3/4″ |
| Opening Width | 54″ |
| Cylinders | 2 × 10″ |
| Tine Thickness | 1½” |
| Tine Spacing | 11¼” (custom available) |
| Pins | Oversized, greaseable 1¼” |
| Widths Stocked | 72″, 78″, 84″ (custom available) |
Notable Features
- Independent tines; reinforced quick-attach.
- Protected hoses; covered cylinders; fully greaseable hinges.
- Parker hoses/fittings/couplers included.
XHD VERTICAL ROOT GRAPPLES (75-120HP MACHINES)
| Part # | Description | Weight |
|---|---|---|
| 0660701072 | 72″ XHD VERTICAL ROOT GRAPPLE | 1117lbs |
| 0660701078 | 78″ XHD VERTICAL ROOT GRAPPLE | 1166lbs |
| 0660701084 | 84″ XHD VERTICAL ROOT GRAPPLE | 1215lbs |
Overview
Our professional-grade grapples are engineered for heavy-duty skid steers and compact track loaders, designed to deliver unparalleled performance for land clearing, forestry, demolition, and construction applications. Constructed from reinforced, high-strength steel, these grapples are precision-built to withstand extreme stress while maintaining smooth, reliable operation under continuous use. Whether moving logs, brush, or debris, these attachments provide superior clamping force and control, making them indispensable for operators demanding efficiency and durability on the jobsite.
Key Features & Benefits
- Dual hydraulic cylinders providing even, powerful clamping force
- Reinforced steel tines for maximum durability against heavy loads
- Universal quick-attach compatibility with all major skid steer brands
- Optimized jaw spacing for handling various debris sizes safely
- Corrosion-resistant coatings to extend service life in harsh conditions
Applications & Industries
Grapples excel in diverse professional settings including forestry, construction, agriculture, and land management. They are ideal for clearing brush, moving timber, transporting large debris, and even managing rock and demolition waste. Operators benefit from increased speed and efficiency, reducing manual labor and downtime while maintaining precision control.
Compatibility & Fit
Designed for universal fit, these grapples seamlessly attach to Bobcat, John Deere, CAT, Kubota, and other major skid steer and compact track loader systems. Quick-attach mounts ensure minimal setup time, while adjustable hydraulic fittings accommodate a wide range of flow and pressure requirements.
Durability & Maintenance
Built to last, these grapples feature welded steel frames, reinforced pivot points, and replaceable wear components. Regular lubrication of pivot joints, periodic inspection of tines, and hydraulic maintenance ensure peak performance over years of heavy use. Their rugged construction minimizes downtime, providing long-term reliability for professional operators.
Why Choose These Grapples
Engineered with the contractor in mind, these grapples combine strength, precision, and versatility. Trusted by professionals nationwide, they offer unmatched durability, efficiency, and control, ensuring operators can handle any land-clearing or debris-handling challenge with confidence.
FAQ
Q: Will this grapple fit my skid steer?
A: Yes, it is compatible with all universal quick-attach skid steer systems, including Bobcat, CAT, John Deere, and Kubota.
Q: Can it handle large logs or heavy brush?
A: Absolutely, the reinforced steel tines and dual-cylinder design allow it to handle large timber and dense debris safely.
Q: How do I maintain this grapple?
A: Regular lubrication of pivot points, inspection of hydraulic hoses, and checking tine integrity will ensure long-lasting performance.
