Compact Tractor Grapple Bucket

➜ Have questions or want to learn more about this equipment? Our experts are here to assist you with detailed information, pricing, and availability. Reach out by phone, send us an email, or visit us in person at any of our convenient locations.

  • Check Mark Performance Guaranteed
  • Check Mark Made in USA
  • Done Available at Denton, NC
  • Done Available at Myrtle Beach, SC

Compact Tractor Grapple Bucket — Specifications

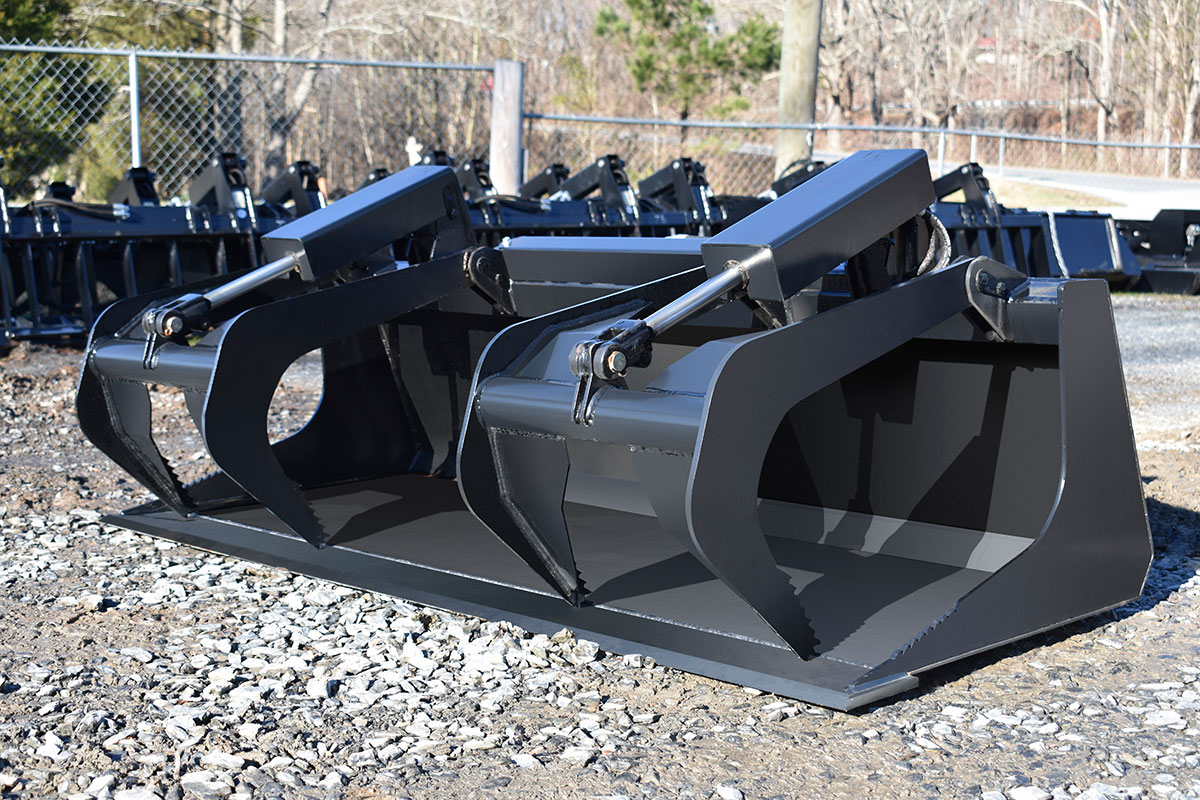

Overview. Purpose-built double tine 3″ square tubing grapple bucket for compact tractors and small loaders, this grapple bucket combines a reinforced floor/back with a strong independent clamp. It’s sized to keep machine balance right while giving you real grip on brush, limbs, and debris.

Compatibility

  • Compact tractors & small loaders (mini mounts available)

Core Specs

Overall Height 27 5/8″
Overall Length 31″
Cylinder 2″ × 8″ AG cylinders
Top Tine 3/8″ steel
Opening 30″
Bottom / Back 3/16″ reinforced
Cutting Edge ½″ × 6″ (bolt-on reversible double edge standard)
Hydraulics Covered cylinder; protected hoses
Stock Widths 60″, 66″, 72″
Weight — (varies by width) View Part Table Below

Notable Features

  • Independent grapple tine clamp controls for uneven loads without crushing the bucket floor.
  • Greaseable pins and hinges for easy service.
  • Reinforced quick-attach keeps the carriage square under clamp force.
  • Compact-friendly mass to protect lift/tilt performance.

COMPACT TRACTOR GRAPPLE BUCKETS (25-50HP MACHINES)

Part # Description Weight
0150301060 60″ COMPACT TRACTOR GRAPPLE BUCKET 446lbs
0150301066 66″ COMPACT TRACTOR GRAPPLE BUCKET 460lbs
0150301072 72″ COMPACT TRACTOR GRAPPLE BUCKET 480lbs

Overview

Our professional-grade grapples are engineered for heavy-duty skid steers and compact track loaders, designed to deliver unparalleled performance for land clearing, forestry, demolition, and construction applications. Constructed from reinforced, high-strength steel, these grapples are precision-built to withstand extreme stress while maintaining smooth, reliable operation under continuous use. Whether moving logs, brush, or debris, these attachments provide superior clamping force and control, making them indispensable for operators demanding efficiency and durability on the jobsite.

Key Features & Benefits

  • Dual hydraulic cylinders providing even, powerful clamping force
  • Reinforced steel tines for maximum durability against heavy loads
  • Universal quick-attach compatibility with all major skid steer brands
  • Optimized jaw spacing for handling various debris sizes safely
  • Corrosion-resistant coatings to extend service life in harsh conditions

Applications & Industries

Grapples excel in diverse professional settings including forestry, construction, agriculture, and land management. They are ideal for clearing brush, moving timber, transporting large debris, and even managing rock and demolition waste. Operators benefit from increased speed and efficiency, reducing manual labor and downtime while maintaining precision control.

Compatibility & Fit

Designed for universal fit, these grapples seamlessly attach to Bobcat, John Deere, CAT, Kubota, and other major skid steer and compact track loader systems. Quick-attach mounts ensure minimal setup time, while adjustable hydraulic fittings accommodate a wide range of flow and pressure requirements.

Durability & Maintenance

Built to last, these grapples feature welded steel frames, reinforced pivot points, and replaceable wear components. Regular lubrication of pivot joints, periodic inspection of tines, and hydraulic maintenance ensure peak performance over years of heavy use. Their rugged construction minimizes downtime, providing long-term reliability for professional operators.

Why Choose These Grapples

Engineered with the contractor in mind, these grapples combine strength, precision, and versatility. Trusted by professionals nationwide, they offer unmatched durability, efficiency, and control, ensuring operators can handle any land-clearing or debris-handling challenge with confidence.

FAQ

Q: Will this grapple fit my skid steer?
A: Yes, it is compatible with all universal quick-attach skid steer systems, including Bobcat, CAT, John Deere, and Kubota.

Q: Can it handle large logs or heavy brush?
A: Absolutely, the reinforced steel tines and dual-cylinder design allow it to handle large timber and dense debris safely.

Q: How do I maintain this grapple?
A: Regular lubrication of pivot points, inspection of hydraulic hoses, and checking tine integrity will ensure long-lasting performance.

Keywords & Related Terms

skid steer grapple, root grapple, brush grapple, heavy-duty grapple attachment, forestry grapple, debris handling, universal quick-attach grapple, land clearing attachment
