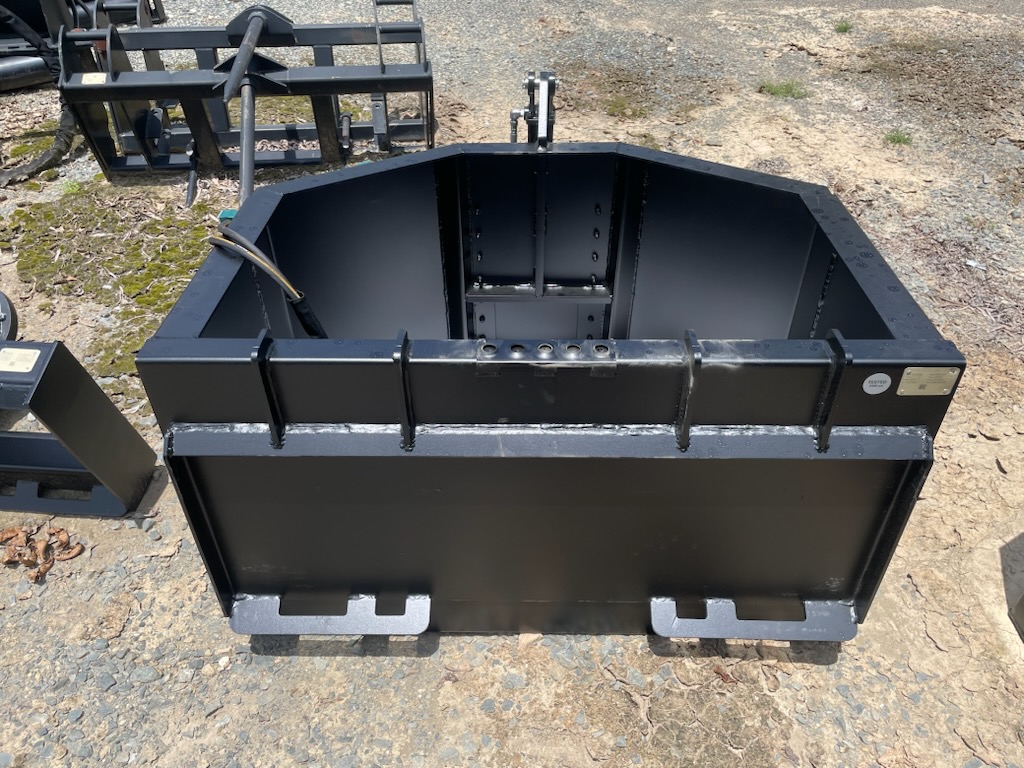

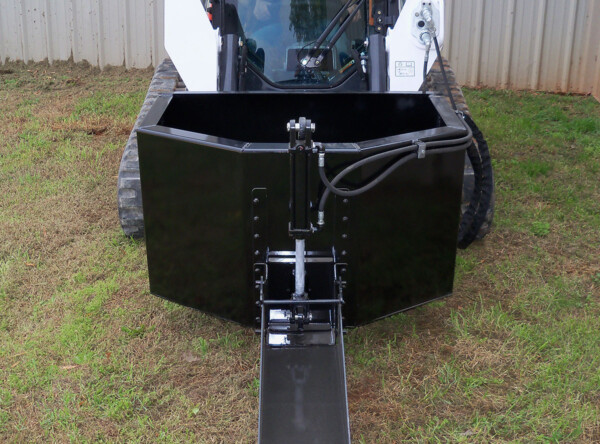

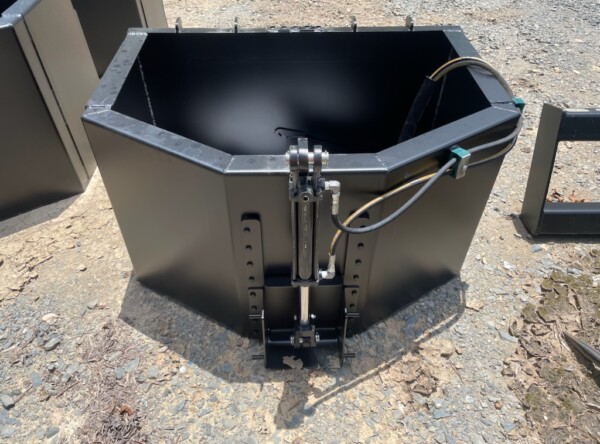

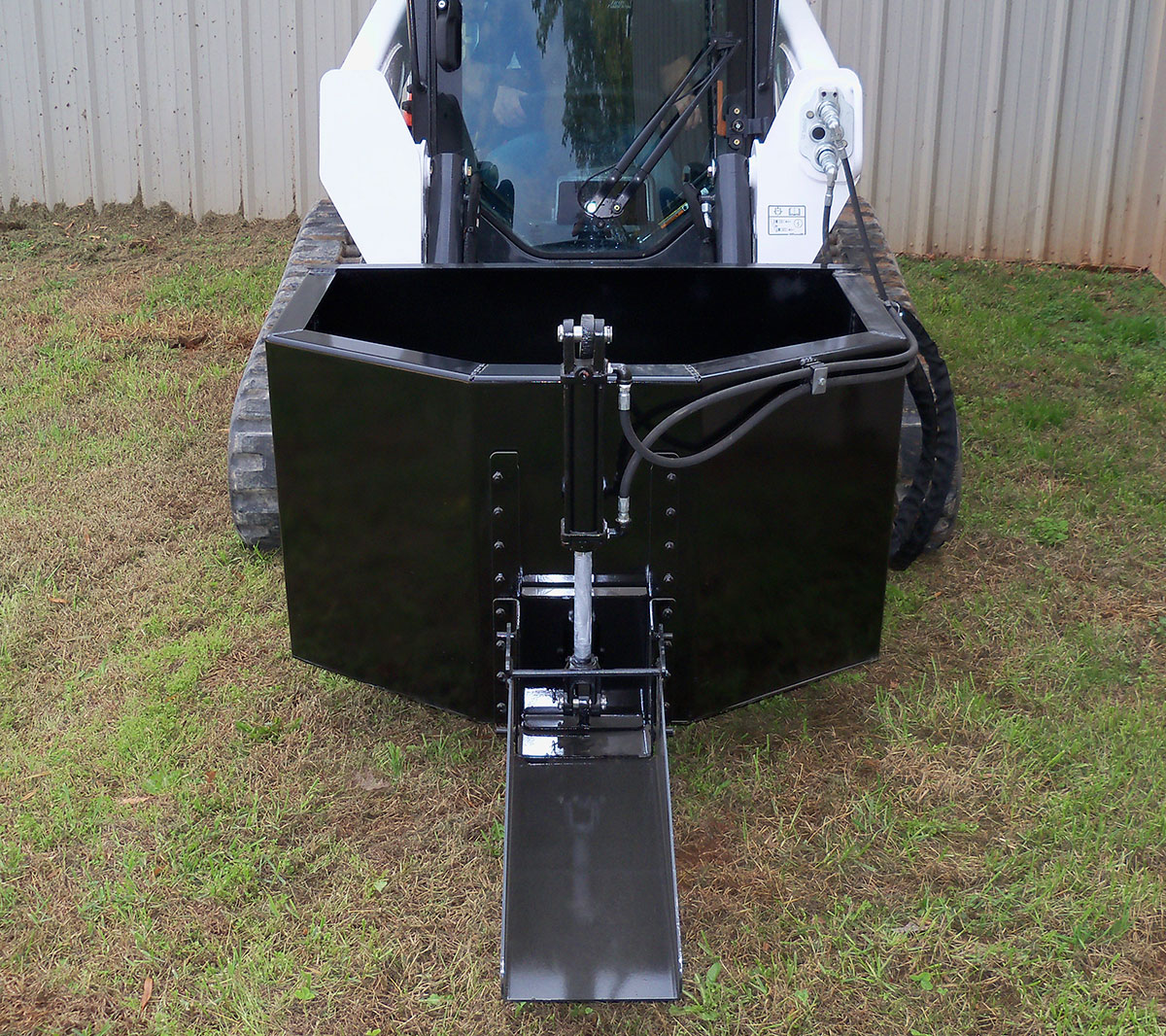

Hydraulic Concrete Bucket
➜ Have questions or want to learn more about this equipment? Our experts are here to assist you with detailed information, pricing, and availability. Reach out by phone, send us an email, or visit us in person at any of our convenient locations.
- Performance Guaranteed
- Made in USA
- Available at Denton, NC
- Available at Myrtle Beach, SC
Hydraulic Concrete Bucket — Specifications
Overview. Aux-actuated gate provides controlled discharge for forms, footings, and slabs—put the mud exactly where you want it.
Applications
- Footings and stem walls
- Sidewalks, pads, and approaches
- Remote pours where chutes won’t reach
Hydraulics
- Operator-controlled gate
- Protected hose routing; jobsite-ready fittings
Core Specs
| Overall Width | 47″ |
|---|---|
| Overall Height | 29″ |
| Capacity | 3/4 Yard |
| Chute Length | 24″ |
| Cylinder | 2″x8″ |
| Material Specs | 3/16″ Bucket, 1/4″ Chute, 3/8″ Gussets, 3/16″ Door |
| Lift Capacity | 3,100lbs |
| Weight | 478lbs |
Notable Features
- Cleaner edges and reduced waste versus gravity chutes
- Easy wash-out surfaces
- Built to resist abrasion from aggregate
CONCRETE BUCKETS
| Part # | Description | Weight |
|---|---|---|
| 0193601046 | HYDRAULIC CONCRETE BUCKET 3/4 YARD | 478lbs |
| 01936-08 | HYDRAULIC CONCRETE BUCKET REPLACEMENT CHUTE |
Overview
Our professional-grade buckets for skid steers and mini-excavators are engineered for maximum efficiency and durability across construction, landscaping, excavation, and municipal applications. Built from high-strength steel and reinforced in all stress points, these buckets handle everything from heavy soil and gravel to rocks, debris, and snow. Designed with contractors, operators, and rental fleet managers in mind, they combine versatility, reliability, and ease of use to keep machines productive in demanding environments.
Key Features & Benefits
- Precision-engineered buckets with reinforced cutting edges and replaceable wear plates to withstand abrasive materials and high-stress tasks.
- Universal quick-attach compatibility for major brands like Bobcat, CAT, John Deere, and Kubota, minimizing downtime during attachment swaps.
- Task-specific geometries optimize fill-factor and reduce cycle times for operations such as general-purpose material handling, rock excavation, trenching, or snow removal.
- High-capacity designs ideal for low-density materials like mulch and snow.
- Skeleton and sifting variants allow dirt to pass through while retaining rocks and debris.
- Comprehensive attachment line that balances strength, durability, and operational efficiency.
Applications & Industries
Buckets are indispensable for a wide range of professional applications. General-purpose buckets excel in daily soil, gravel, and aggregate handling tasks, providing a balanced capacity for routine loading and transport. Rock and heavy-duty buckets handle sifting and excavation of stone, demolition debris, and high-abrasion materials, reducing machine wear and operator fatigue. Trenching and long-bottom buckets are ideal for pipeline, utility, and foundation work, allowing precise placement and consistent material control. Low-profile and grading buckets are designed for finish work and tight-space operations, offering enhanced visibility and precision. Skeleton and sifting buckets simplify sorting and clearing debris from soil, while light-material and snow/mulch buckets are optimized for high-volume, low-density loads. This variety ensures that every professional operator can select a bucket perfectly suited for their task, improving efficiency, speed, and job-site productivity.
Compatibility & Fit
All buckets are designed for universal quick-attach skid steer and compact loader systems, making them compatible with the majority of machines in the field. It is essential to verify plate width, pin spacing, and hydraulic specifications to ensure optimal fit and safe operation. Each bucket’s design is carefully engineered to align with industry-standard mounting systems, reducing setup time and providing secure, stable operation across different brands and models.
Durability & Maintenance
These buckets are constructed from high-strength structural steel with reinforced welds and engineered stress points to withstand demanding jobsites. Regular maintenance includes inspecting pins and pivot points, checking cutting edges and wear plates, and replacing components when necessary to maintain maximum performance. Following proper maintenance protocols prolongs the service life of each bucket and ensures consistent, reliable operation. Operators handling abrasive materials or frozen ground should monitor wear plates and replace them before performance is compromised.
Why Choose These Buckets
Choosing the right bucket is critical for maximizing efficiency, reducing downtime, and protecting your equipment. Our buckets are engineered to meet the exacting standards of professional operators, offering task-specific designs, robust construction, and universal compatibility. By investing in these buckets, operators benefit from reduced cycle times, improved material handling, and enhanced job-site safety. The combination of durability, versatility, and precision makes these buckets the preferred choice for contractors, landscapers, and rental fleets nationwide.
FAQ
Q: Will this bucket fit my skid steer?
A: Yes, these buckets are designed for universal quick-attach systems compatible with most major brands. Always verify plate width, pin spacing, and hydraulic capacity before installation.
Q: Can these buckets handle rocks and abrasive materials?
A: Absolutely. Rock and heavy-duty variants are reinforced with high-wear steel cutting edges and bolt-on wear plates for maximum durability in harsh conditions.
Q: How often should I replace cutting edges and wear plates?
A: Maintenance schedules vary based on material and usage. For heavy-abrasion or frozen ground applications, inspect every 250–500 hours and replace wear components when roughly 50% worn to maintain performance.
Keywords & Related Terms
skid steer bucket, mini excavator bucket, general-purpose bucket, rock bucket skid steer, trenching bucket, skeleton bucket, grading bucket, snow bucket skid steer, universal quick attach bucket, heavy-duty excavation bucket, loader bucket attachment, material handling bucket attachment
